GTS300 Platinum resistance temperature sensor
GTS300 platinum resistance temperature sensor is a platinum resistance chip imported from Heraeus, which is packaged into shells of different materials and structures using high thermal conductivity silicone grease and other materials. The signal is led out through cables of different specifications to achieve temperature monitoring and control.It is widely used in a variety of application scenarios such as aerospace, medical care, cold chain transportation, automobile manufacturing, and industrial automation.
Temperature range: -200~+650℃
Output signal: RTD
Probe type: straight pipe, thread, etc.
Probe material: stainless steel, brass, ABS, etc.
Cable material: PVC, TPE, silicone, PTFE, mica wire, etc.
Connectors: Molex, JST, DuPont, etc.

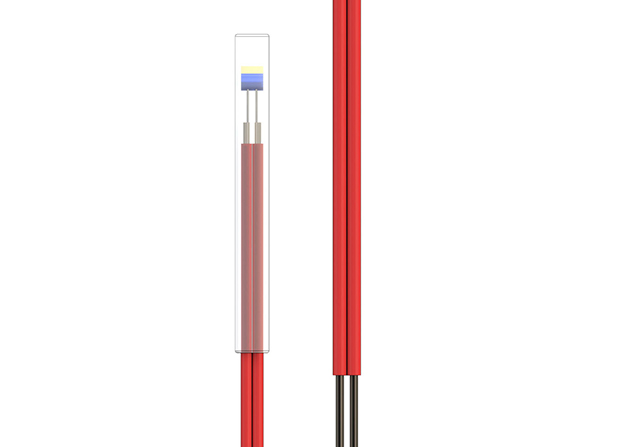

The inside of the probe is potted with high-quality thermally conductive materials, which can effectively conduct temperature and reduce the impact of temperature gradients, allowing the temperature sensor to respond to temperature changes faster and improve measurement accuracy and sensitivity. At the same time, it also has a certain protective effect to prevent the chip from being damaged by the external environment and improve the reliability and durability of the sensor.

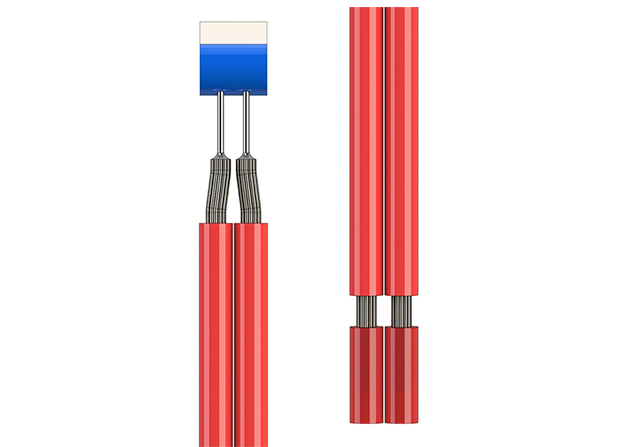

The connection between the platinum resistor chip pins and the cable adopts high-quality welding processes such as laser welding or butt welding. The overall welding quality is good, the mechanical strength is high, and the thermal deformation is small. Compared with traditional soldering and other welding processes, it not only has small solder joints and beautiful appearance, but also can work normally in high-temperature environments. It will not cause the welding joint to disconnect due to excessive temperature, thereby causing signal disconnection.

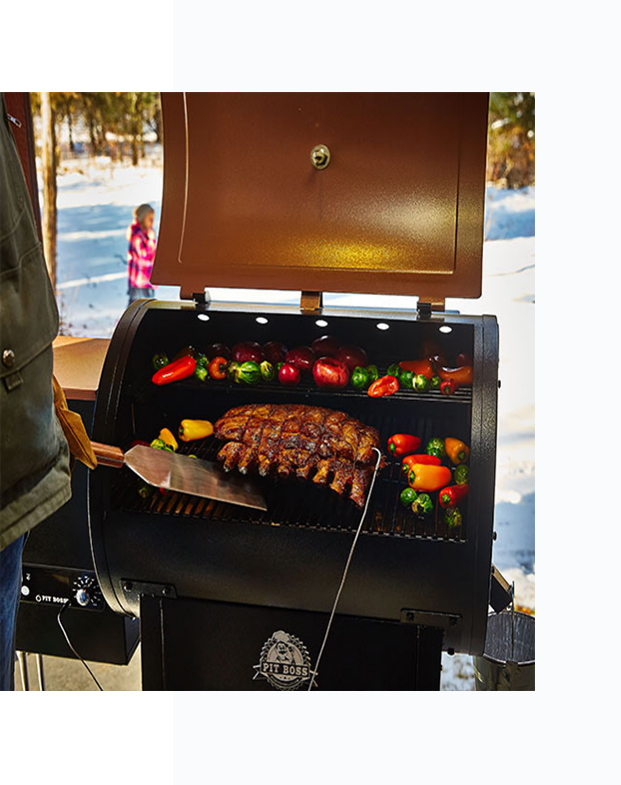

BBQ temperature sensor
Temperature is one of the important factors affecting the quality of barbecue. The optimal barbecue temperatures for different ingredients are different. The temperature sensor can accurately monitor the temperature of the food and control the cooking time, thereby helping the chef to control the cooking status of the food so that it can achieve the best taste and flavor while avoiding food safety issues occur.Solutions
The BBQ-specific temperature sensor not only has high temperature measurement accuracy, but also can continuously monitor the temperature of barbecue equipment and ingredients without manual readings, and converts the temperature data into corresponding analog signals in real time and transmits them to the temperature control and adjustment system to realize the automation of oven temperature. Adjust and control to ensure the best taste of barbecue ingredients.
1. The probe is made of food-grade stainless steel, which is not only resistant to high temperatures, but also not easy to rust and will not contaminate food.
2. The design of a pointed tube or a reduced-diameter pointed tube makes it easy to insert into food without damaging the structure of the food itself.
3. The end of the probe can be equipped with an optional handle or protective sleeve to prevent burns during temperature measurement.
4. The cable is made of stainless steel mesh braided cable, which is resistant to high temperature, bending and not easy to be damaged.
